CANchecked TCC01 Thermocouple Amplifier

One of the smallest and fastest type-K converters in the world

Optimal for type-K sensors in connection with digital displays and standalone ECU's

The TCC01 is a so-called "Thermocouple Amplifier" - i.e. a device that amplifies and converts the signal of a type K sensor - our simple Thermocouple Converter. With our TCC01 you can easily connect your exhaust gas temperature sensor:

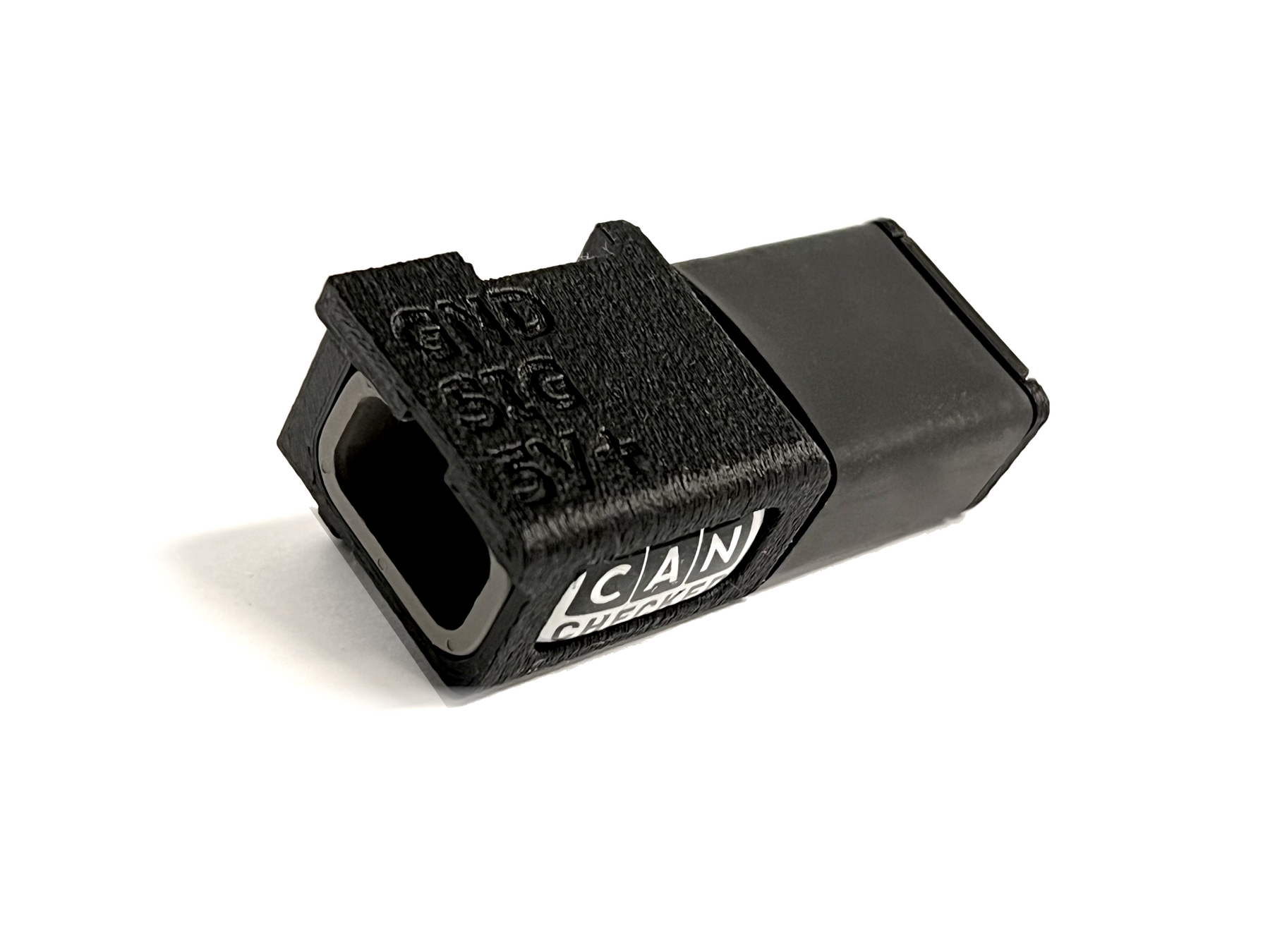

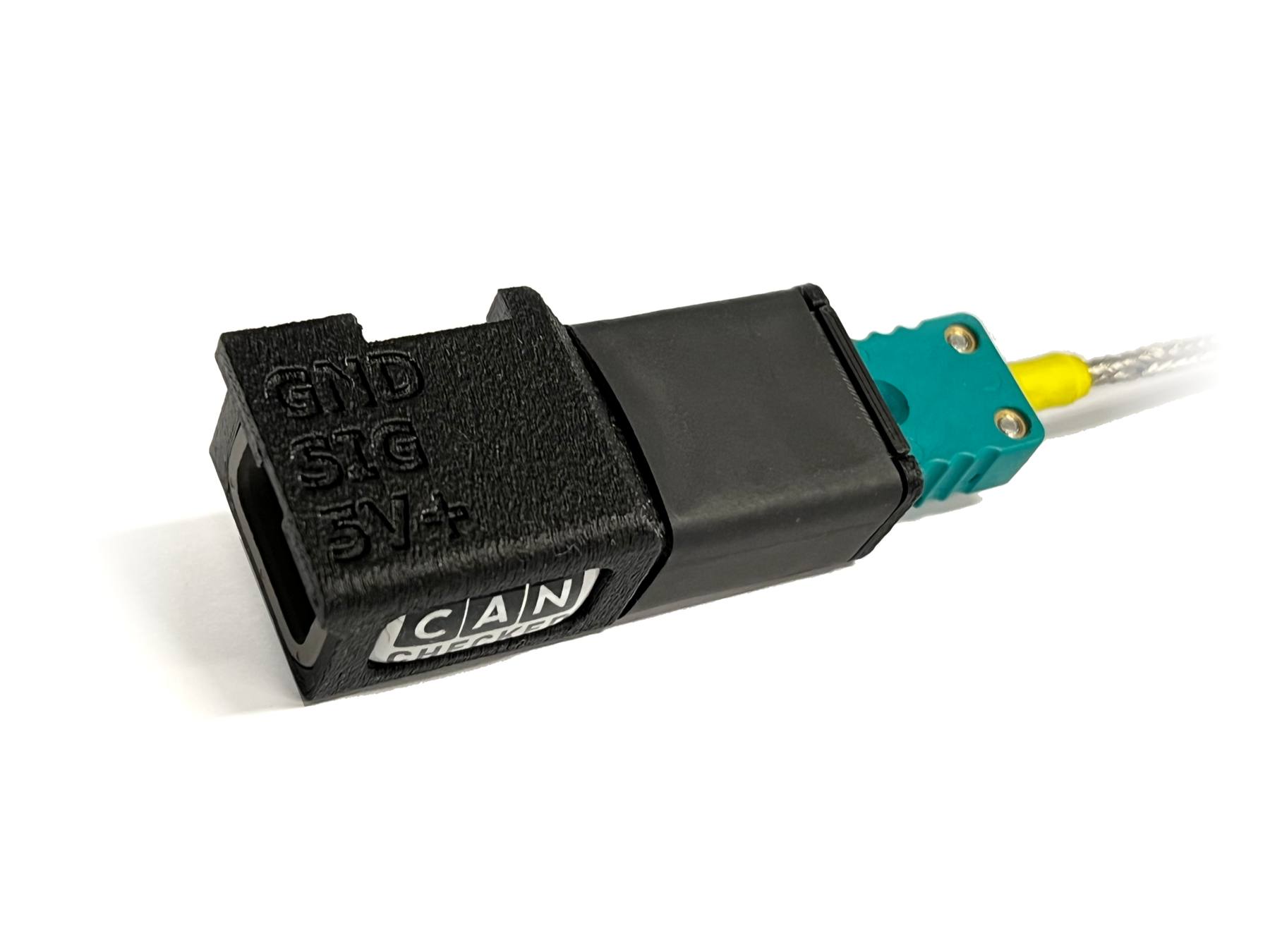

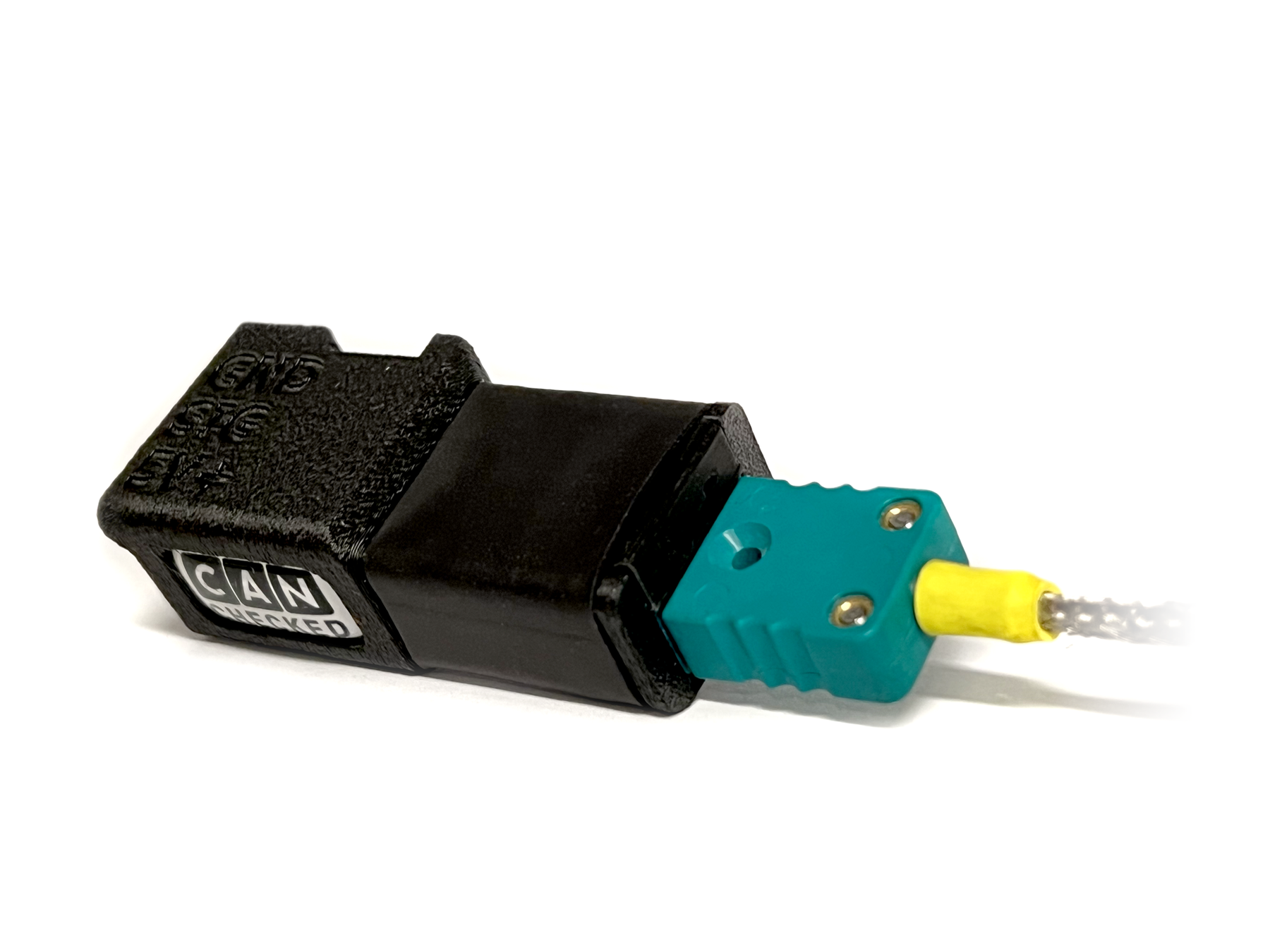

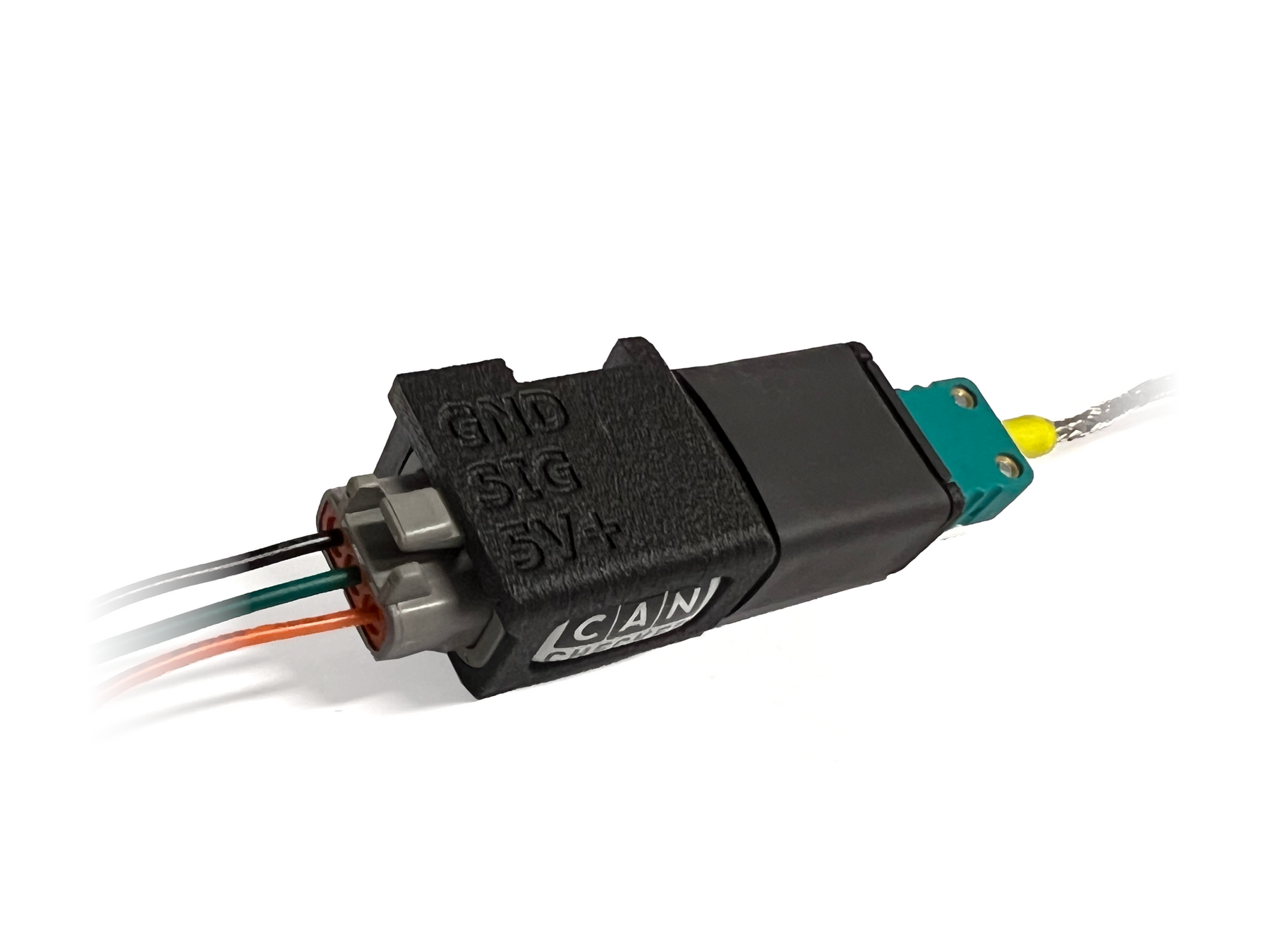

Plug the type K probe into the converter on one side and use the DTM connector on the other side for the power supply by means of 5V, ground and the signal for your control unit or data display.

Features TCC01

• Reliable thermocouple amplifier
• Cold junction compensated type K input
• DTM06-3S connector
• Standard mini thermocouple plug
• Retaining strap for attachment with M6 screw or cable tie
• Linear temperature curve from 0-1000°

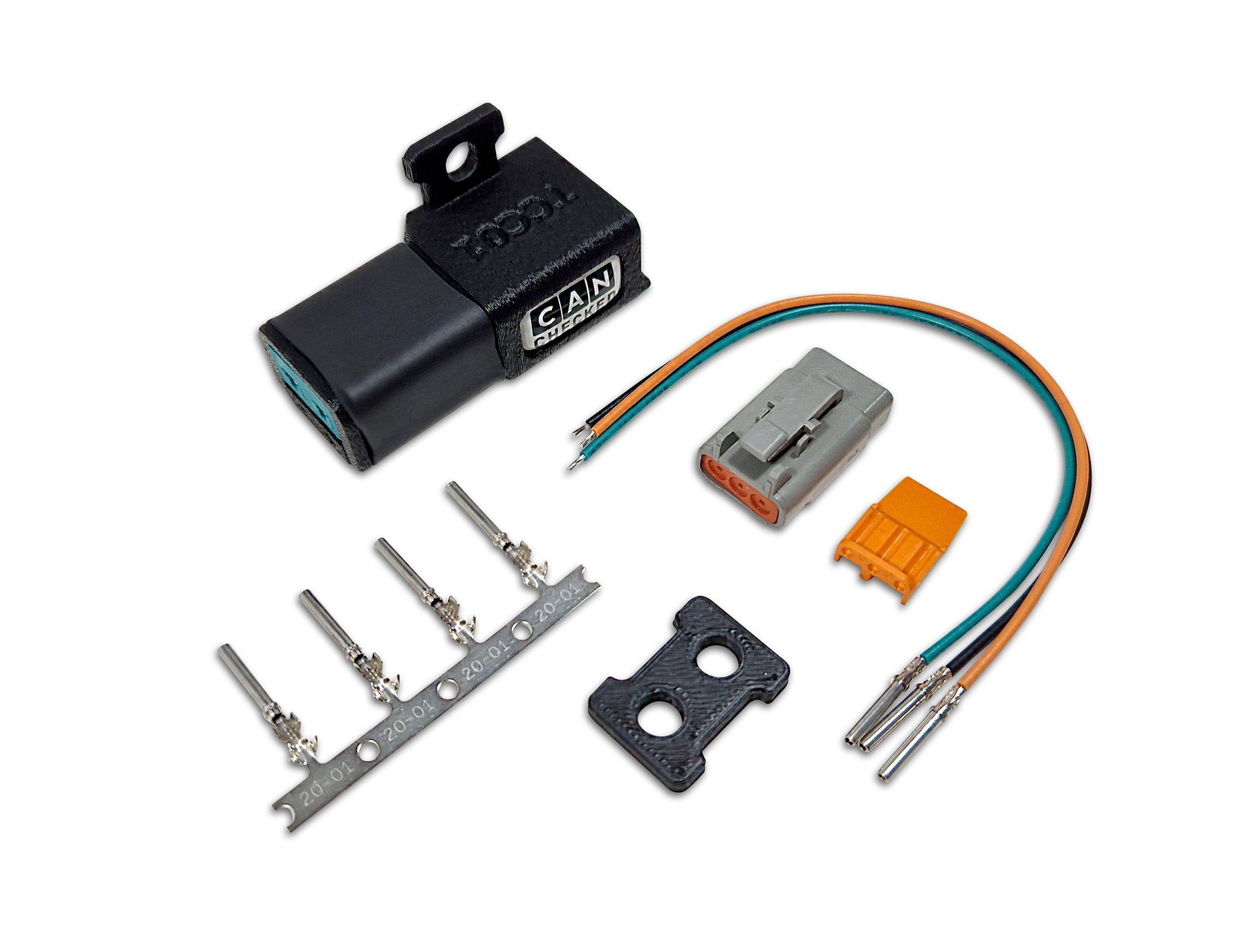

Delivery content

• TCC01 in housing
• DTM connector with locking
• 3 pins to crimp yourself
• 3 pre-crimped connection cables

Support for a variety of devices. Any device that has an analog input for 0-5V signals can be used as a receiver - e.g.:

• AEM
• Ecumaster
• Emtron
• DTAfast
• Haltech
• LinkECU
• KMS van Kronenburg
• MaxxECU
• MBE
• Megasquirt
• Motec
• Syvecs
• VEMS

But the type K converter can not only be used for exhaust gas temperatures. Also for liquids (1mm thermocouples) and gases (0.5mm thermocouples).

Technical specifications

• Only 180uA power consumption
• Very fine resolution with 4mV per °C
• Calibration: 0V = 0°C (32°F) and 5V = 1000° (1832°F)
• Accuracy: maximum 2% deviation
• Internal cold junction compensation
• For measuring gases, liquids and other media
• Support of different type K elements (also 0.5, 1, 3 and 5mm diameter)

Installation

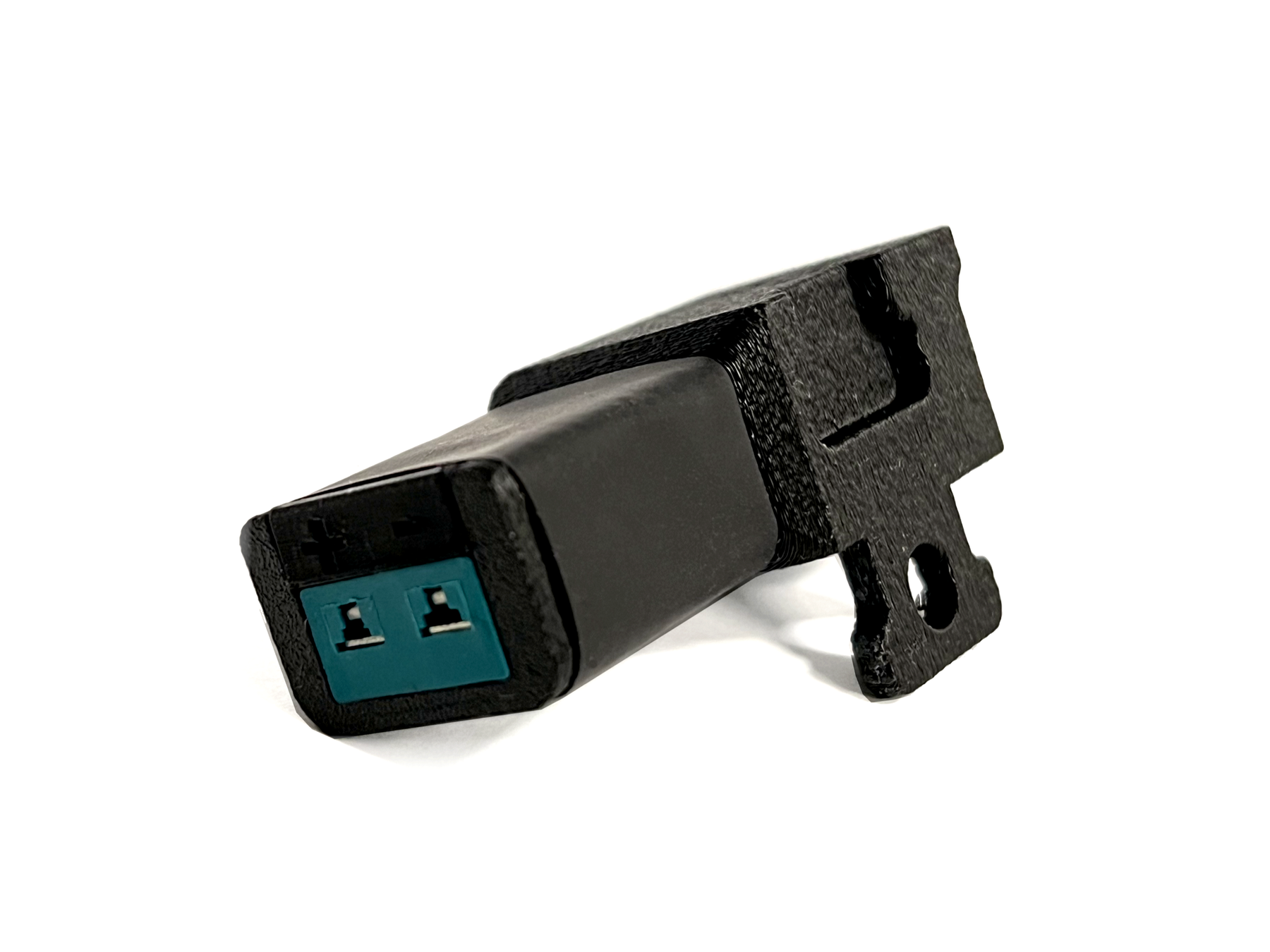

The installation of the Thermocouple Converter TCC01 (Thermocouple Amplifier) ??is easy. It should be placed in a dry and not too hot place, for example behind the bulkhead. You can use the integrated tab for attachment. Due to the special construction, it is possible to attach additional TCC01 parallel next to each other. For maximum fixation, you can attach the included tab to the TCC01 module with superglue.
CANchecked displays are preconfigured to connect the TCC01. To do this, connect signal to AIN2.

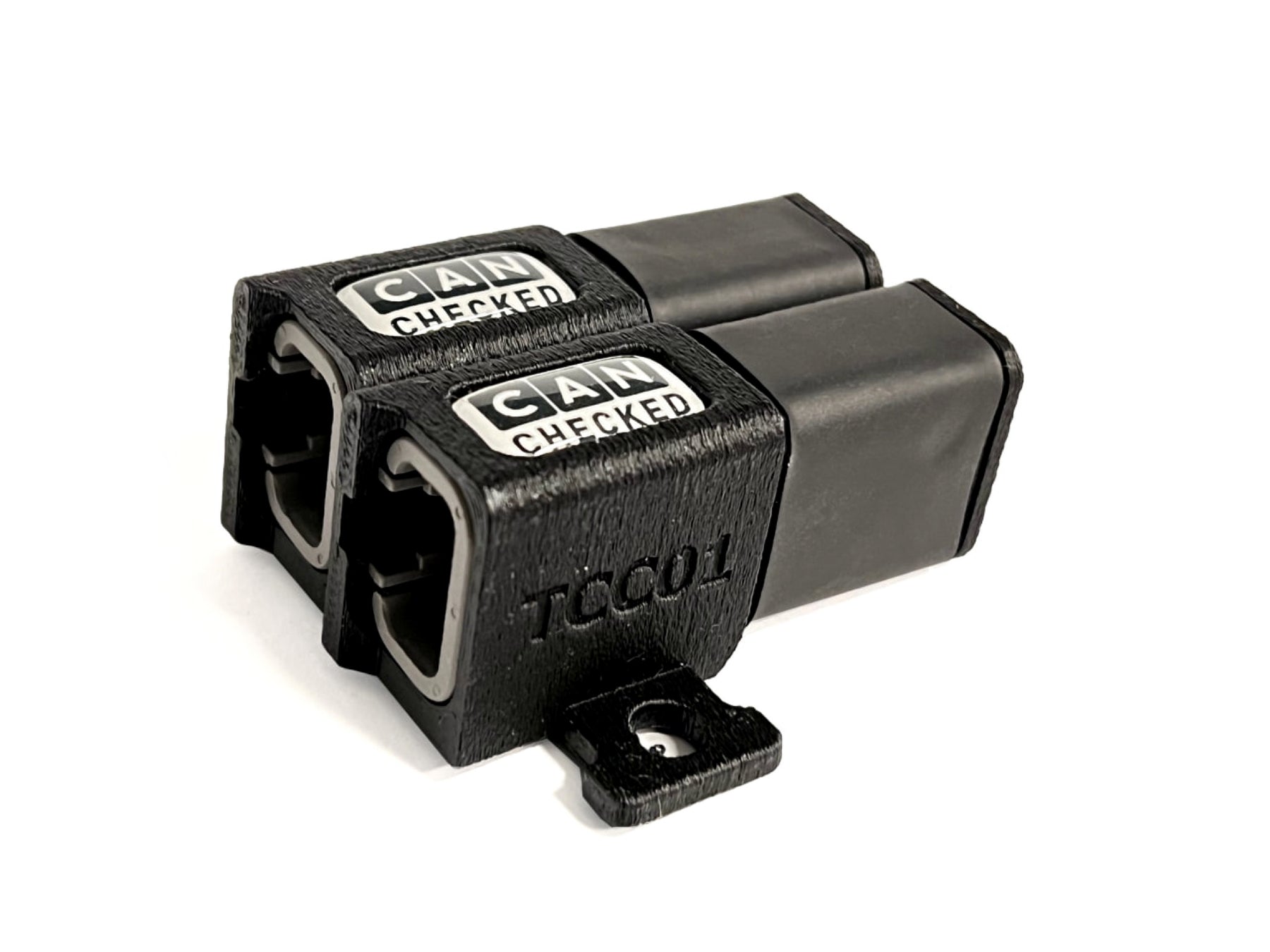

Several TCC01 modules
However, you often need two or more modules, for example with TwinScroll charging manifolds. Here you can simply plug the modules into each other.
